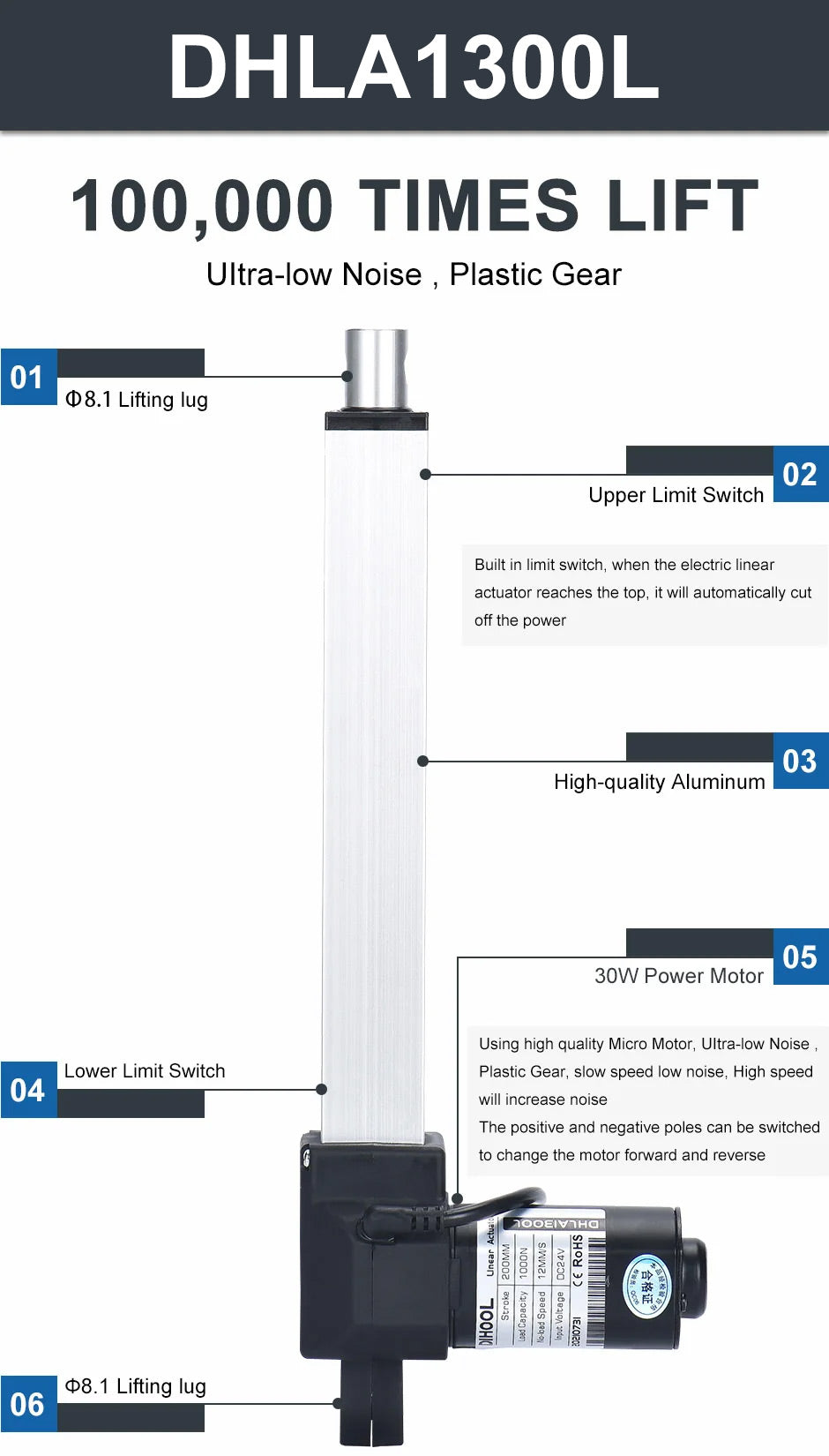

Electric Linear Motion Actuator 24V DC Motor 1500N 330LB Load - DHLA1300L
$16.00
Note: The stroke can be customized such as 650MM, 70MM, etc., And it will take 3-7 days. TECHNICAL PARAMETERS Voltage DC24~32V No-Load Speed (MM/S) 5 12 25 40 52 Load Pull Capacity (N) 1500 1000 500 350 300 Load Push Capacity (N) 1500 1000 500 350 300 Self-locking Capacity (N)...
Note: The stroke can be customized such as 650MM, 70MM, etc., And it will take 3-7 days.
TECHNICAL PARAMETERS
| Voltage | DC24~32V | ||||
| No-Load Speed (MM/S) | 5 | 12 | 25 | 40 | 52 |
| Load Pull Capacity (N) | 1500 | 1000 | 500 | 350 | 300 |
| Load Push Capacity (N) | 1500 | 1000 | 500 | 350 | 300 |
| Self-locking Capacity (N) | 1500 | 1000 | 500 | 350 | 300 |
| Stroke Length | 30mm-1000mm | ||||
| Operating Temperature | -10°C~+45°C | ||||
| Limit Switches | Built-in | ||||
| Operating Frequency | 10% max 2min. continuous use | ||||
| Inner Tube | Aluminum tube | ||||
| Lead screw Type | Type T | ||||
| The gray bottom can be equipped with a Hall sensor switch, the sound is low, mainly because the Hall motor is stocked, and the other can also be equipped with a Hall controller, the minimum order is 100 pieces. | |||||

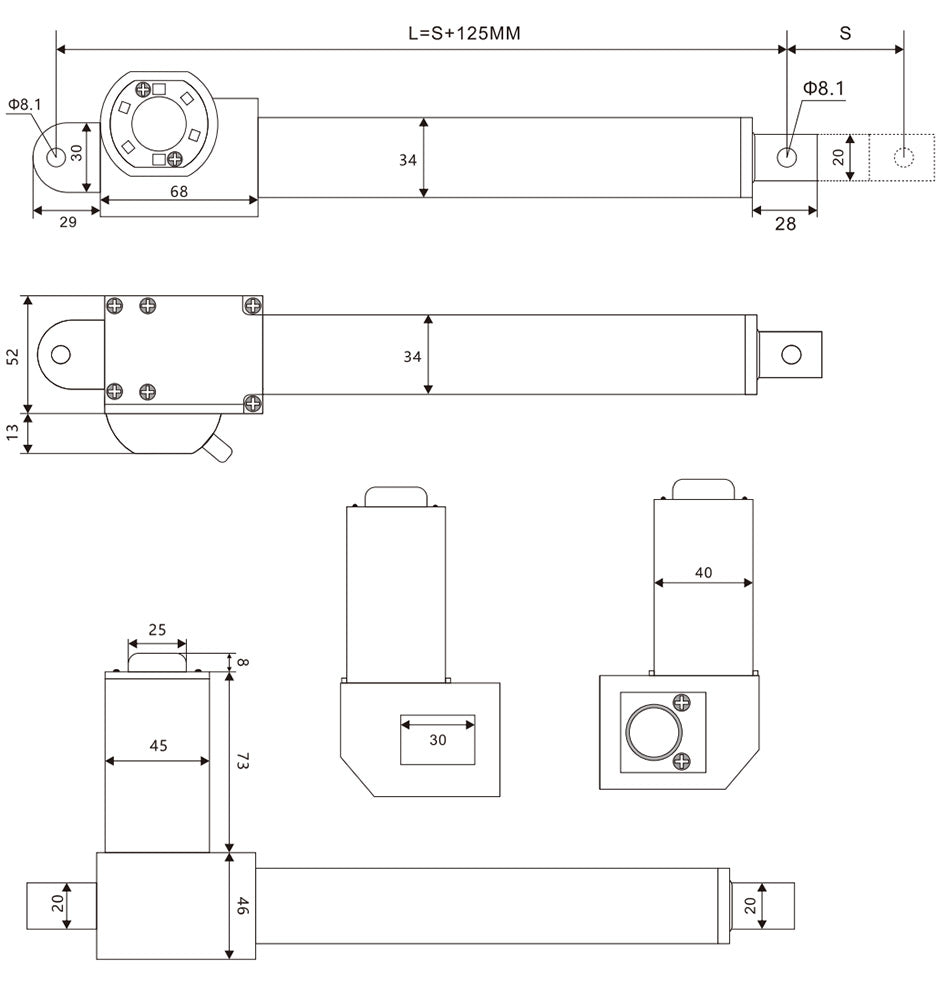

OUTLINE DIMENSION DRAWING
Optional Configuration
