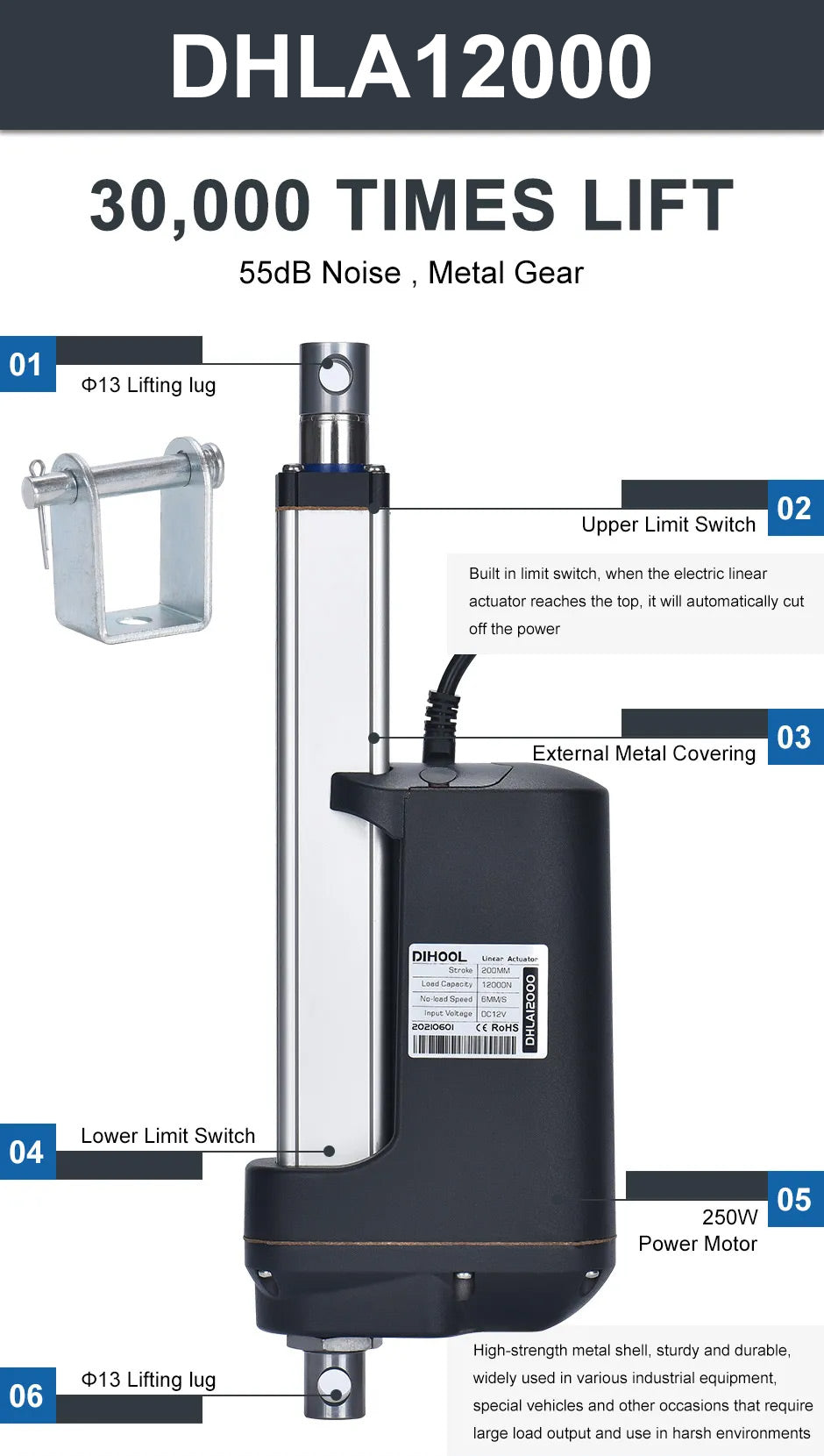

Electric Linear Motion Actuator 24V DC Motor 12000N 2640LB Load - DHLA

Note: The stroke can be customized such as 650MM, 70MM, etc., And it will take 3-7 days.

TECHNICAL PARAMETERS

Voltage	DC24~32V
No-Load Speed (MM/S)	6.5	8.5	13	17	20	30	40	60
Load Pull Capacity (N)	12000	11000	10000	7000	6500	4000	3000	2000
Load Push Capacity (N)	12000	11000	10000	7000	6500	4000	3000	2000
Self-locking Capacity (N)	15000	12000	12000	8000	8000	5000	4000	3000
Stroke Length	50mm-2000mm
Motor Power	240W (24V-10A)
Operating Temperature	-40°C~+65°C
Limit Switches	Built-in
Material	304 Stainless Steel and Aluminum
Operating Frequency	10% continuous work for 2 minutes
Protection Class	IP68
Color	Black
Lead Screw Type	Type T
Mechanical Life	More than 30,000 times
