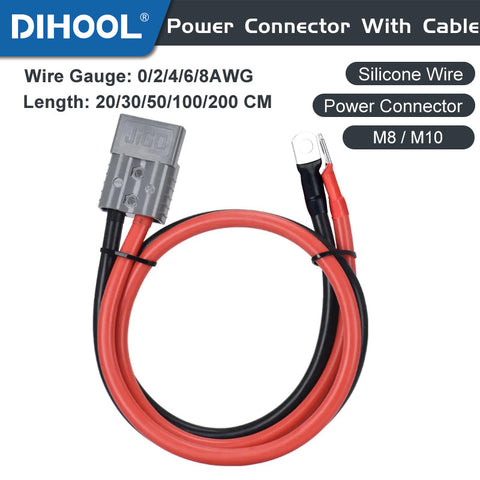

SWAD-SC Battery Cable 50A 120A 175A 350A Terminal M8/M10
TECHNICAL PARAMETERS
Wire gauge: 10AWG(6mm²) / 8AWG(10mm²) / 6AWG(16mm²) / 4AWG(25mm²) / 2AWG(35mm²) / 0AWG(50mm²)
Conductor material: Stranded tinned copper
Inner-core diameter: 0.08mm
Insulation material: high quality silicone
Temperature range: -60°C~+200°C
Rated voltage: 600V;
Length: 20/30/50/100/200 cm;
Using high-purity tinned copper core, stronger oxidation resistance and stable conductivity
About Connector:
Model: Two-pole Power Connector (50A/120A/175A/350A)
Color: Gray
Contact Material: Silver-plated Copper
About Lug:
Model: SC Terminal (M8/M10)
INTRODUCTION
50AD+8AWG Wire
▷50A Power two-pole plug(Gray)
▷8AWG Silicone wire(Cross section 8.3mm²)
50AD+6AWG Wire
▷50A Power two-pole plug(Gray)
▷6AWG Silicone wire(Cross section 16mm²)
120AD+4AWG Wire
▷120A Power two-pole plug(Gray)
▷4AWG Silicone wire(Cross section 25mm²)
175AD+2AWG Wire
▷175A Power two-pole plug(Gray)
▷3AWG Silicone wire(Cross section 35mm²)
350AD+0AWG Wire
▷350A Power two-pole plug(Gray)
▷2AWG Silicone wire(Cross section 50mm²)
If you need AD+M6/M8/M10 Terminals or customize the connector and length, please contact online customer service.
