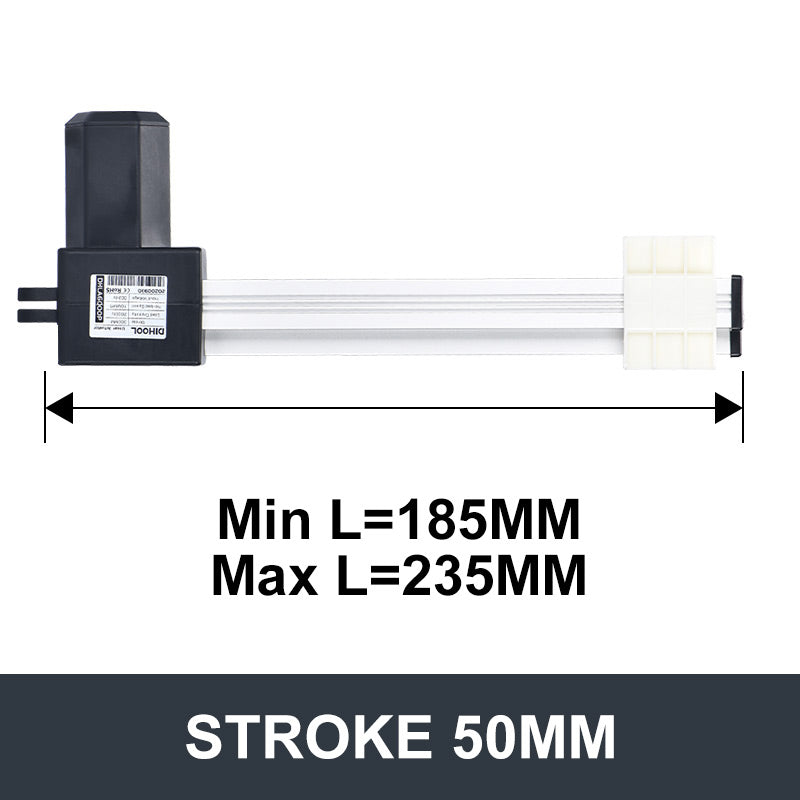

Electric Linear Motion Actuator 12V DC Motor 6000N 1320LB Load - DHLA6000P

Note: The stroke can be customized such as 650MM, 70MM, etc., And it will take 3-7 days. TECHNICAL PARAMETERS Voltage DC12V Speed (MM/S) 5 6 9 12.5 28 Load Pull Capacity(N) 6000 4000 3000 2000 1000 Load Push Capacity(N) 6000 4000 3000 2000 1000 Self-locking Capacity(N) 4000 2000 2000 1000...
STROKE
SPEED
-
+
$40.00

DIHOOL

100 In Stock

Note: The stroke can be customized such as 650MM, 70MM, etc., And it will take 3-7 days.

TECHNICAL PARAMETERS

Voltage
DC12V
Speed (MM/S)
5 6 9 12.5 28
Load Pull Capacity(N)
6000 4000 3000 2000 1000
Load Push Capacity(N)
6000 4000 3000 2000 1000
Self-locking Capacity(N)
4000 2000 2000 1000 500
Stroke Length
30mm-1000mm
Motor Power
60W
Operating Temperature
-10°C~+55°C
Limit Switches
Built-in
IP Grade
IP43
Color
Black and Off-White
Noise
30dB
Operating Frequency
10% continuous work for 2 minutes
Material
Aluminum
Lead screw Type
Type T
Mechanical Life
More than 10,000 times

OUTLINE DIMENSION DRAWING
