DHLT2-C2 Double-legged Lifting Table
$240.00
DHLT2-C2 lifting table is powered by electricity. The height of the lifting table can be adjusted by controlling the mechanical device with an electric motor. The height of the lifting table can also be adjusted by controlling the air pressure bar or hydraulic bar with a compressor. Advantages: small power...
DHLT2-C2 lifting table is powered by electricity. The height of the lifting table can be adjusted by controlling the mechanical device with an electric motor. The height of the lifting table can also be adjusted by controlling the air pressure bar or hydraulic bar with a compressor. Advantages: small power consumption, stable and beautiful style, can rise and fall wide range.
TECHNICAL PARAMETERS
| Model | DHLT2-C2 |
| Voltage | AC100~240V |
| Height Adjustable Range | 700~1200MM |
| Length Adjustable Range | 1010~1700MM |
| Width | 575MM |
| Number Of Motors | 2 |
| Section | 2 |
| Load Capacity | 1600N | 160kg |
| Speed | 40MM/S, 15MM/S |
| Color | RAL9005(Black) / RAL7045(Gray) / RAL9016(White) |
| Operating Temperature | 0°C~+40°C |
| IP Grade | IP54 |
| Operating Frequency | 10% max 2min.continuous use |
| Limit Switches | None |
| Panels | None |
| Controller | Hall Controller | With APP Hall Controller |
| Customized | Table Leg | Hand Control | Color |
| Packaging | L1080mm *W265mm *H235mm |

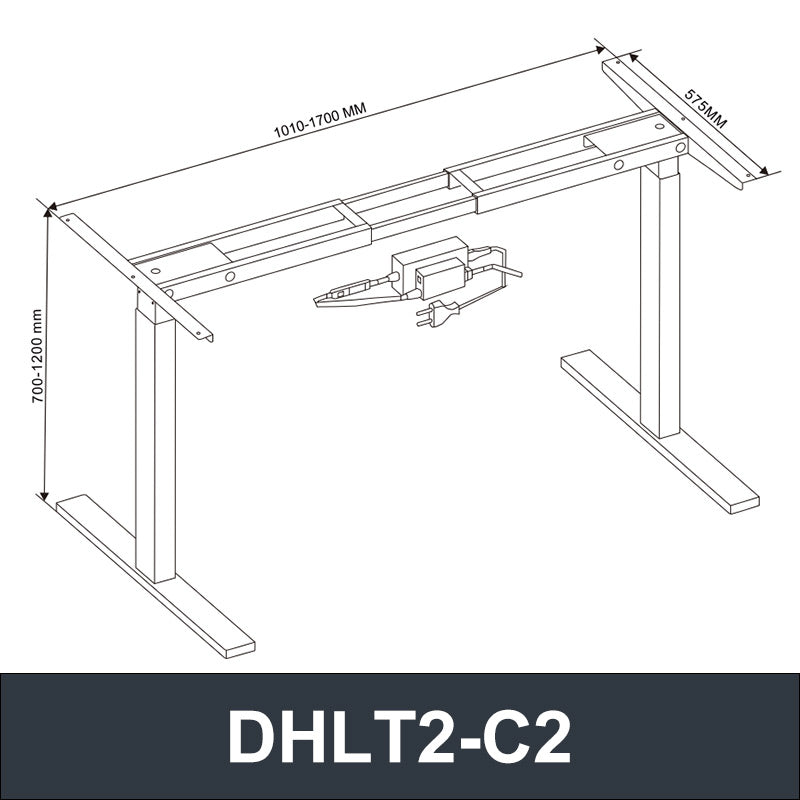

OUTLINE DIMENSION DRAWING
