Electric Lifting Column 24V DC Motor 8000N 1760LB Load - DHLC7180-B
$130.00
Note: The stroke can be customized such as 650MM, 70MM, etc., And it will take 3-7 days. TECHNICAL PARAMETERS Voltage DC24V 60W Speed (MM/S) 3.3 4.5 9 15 24 Load Push Capacity (N) 8000 6000 3000 2000 700 Self-Locking Capacity (N) 8000 6000 3000 2000 700 Max Power 60W Initial...
Note: The stroke can be customized such as 650MM, 70MM, etc., And it will take 3-7 days.
TECHNICAL PARAMETERS
|
Voltage
|
DC24V 60W
|
|||||
|
Speed (MM/S)
|
3.3 | 4.5 | 9 | 15 | 24 | |
|
Load Push Capacity (N)
|
8000 | 6000 | 3000 | 2000 | 700 | |
|
Self-Locking Capacity (N)
|
8000 | 6000 | 3000 | 2000 | 700 | |
|
Max Power
|
60W
|
|||||
|
Initial Height(MM)
|
L=S+175/190
|
|||||
|
Operating Temperature
|
-10°C~+55°C
|
|||||
|
IP Grade
|
IP43
|
|||||
|
Limit Switches
|
Built-in
|
|||||
|
Operating Frequency
|
10% Work System, Maximum 1 Hour Continue Working
|
|||||
|
Color
|
Silver White
|
|||||
|
Panels
|
Powder Coating
|
|||||
|
Stroke Length
|
50mm~1400mm
|
|||||
|
Optional Features
|
Rebound or Pause When Encountering Obstacles
Hall Sensor (Only 24V) Upper and Lower Limit Feedback |
|||||

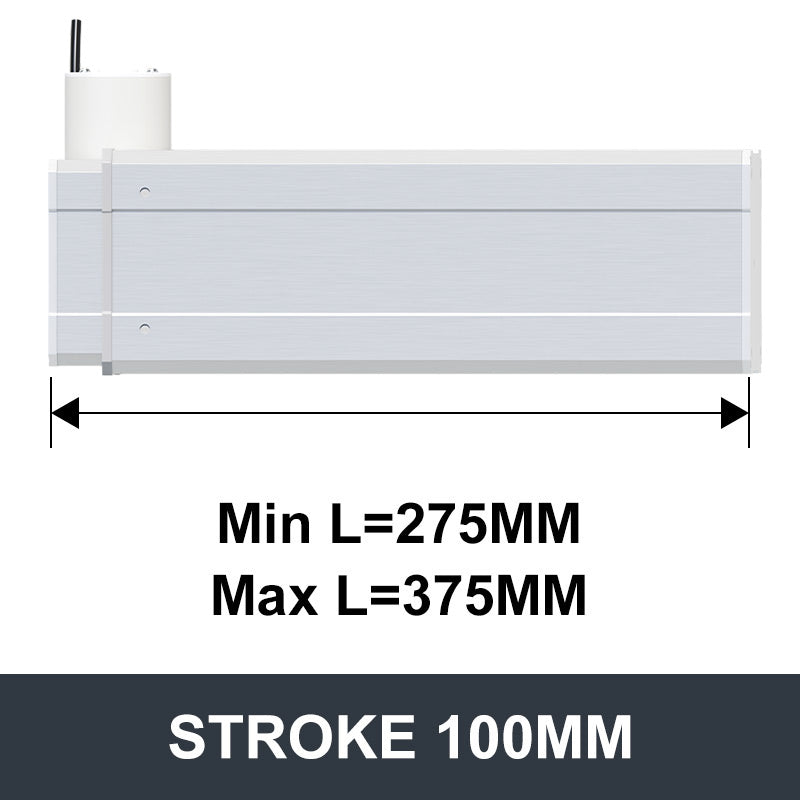

OUTLINE DIMENSION DRAWING
